Concentrate Paste Mango Processing Line 3T/H Jam Processing Machine

Product description of the mango processing line

Mango processing line can produce from fresh mango to different kinds of the final product. The popular products like mango pulp, mango puree, mango concentrate paste, mango sauce, mango juice, mango beverage processing line, which produce from fresh mango to the final product with the aseptic bag in drum.

Flowchart of tomato paste/ sauce or ketchup processing

FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Main parameters of the mango production line

Final products & Package types for the mango project

Shanghai Gofun machinery company offers all kinds of mango processing line.

The raw material can be fresh mango, mango paste, etc. And the final product can be mango paste, mango sauce, mango juice, mango powder, diced mango, dried mango, etc.

For final package, it can be aseptic bag, metal can, sachet, stand-up pouch, PP container, glass bottle, PET bottle, gable top, etc.

Main features of the tomato processing line

1. The capacity of fresh fruit can be customized from 60 Tons/ Day to 1500 Tons/Day.

2.The whole production line design is compact and scientific, stable operation, high efficiency and energy saving, low steam consumption.

3. The final mango paste will be filled into aseptic bags in drum.

4. All the materials are food standard, the main material is SUS304 or SUS316, which fully meets the requirements of food hygiene and safety.

5. Besides aseptic bag filling, we can also provide metal can, small sachet, stand-up pouch, glass jar, PET/PP container, etc.

6. Key points of the production line adopt international first brand.

7. The Brix of final tomato paste can be designed as the customer’s requirement.

8. The operation is simple and humanized.

9. We can also design the customized processing line for different types of fruit and vegetable.

10. The waste from the production line can be produced into fertilizer.

Key process of the mango processing line

Now Shanghai Gofun machinery company will introduce the information of mango pulp puree or mango paste concentrate processing line to show it works.

1. Discharge platform

When fresh mango comes, normally with big trucks, if discharge by labor, it would be very difficult.

2. Elevator

This machine is used to deliver fresh mango from outside the building to inside.

3. Washing

Before crushing, need to washing fresh fruit carefully.

4. Sorting

After washing, the surface of the fruit is clean, we can check the situation of all the fruit by human eye, and sort out the bad tomatoes by human.

5. Destoning

The mango destoner is running with speed of 1470 r/min to crush fresh mango to make sure all the mango cores and peals are fully cleaned, which can greatly reduce the waste and improve the pulp yield.

6. Preheating

The pre-heater is used to heat the product after crusher, the temperature is adjustable, normally from 45℃ to 85℃.

7. Pulper and refiner

This machine is also running with the speed of 1470 r/min, it causes the centrifugal force and the product will go through screen, which helps to refine the product.

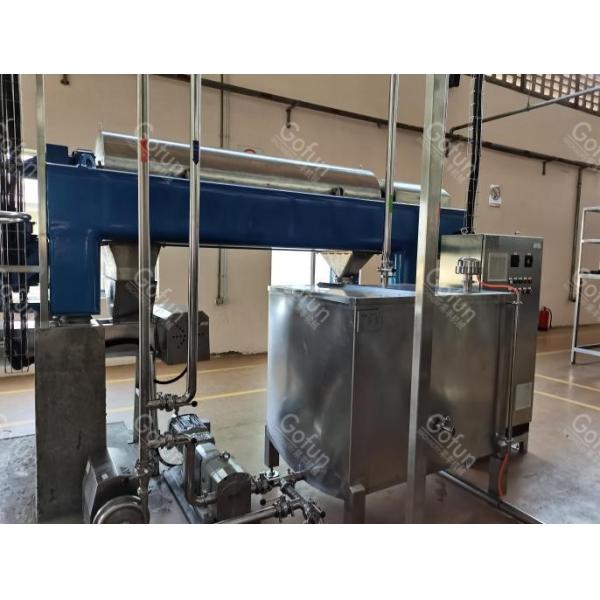

8. Horizontal spiral centrifugal

The machine is used to reduce solids and impurities and ensure the mango pulp puree no impurities and black points.

9. Sterilizing

For mango pulp puree we use the tube in tube type sterilizer for sterilizing.

10. Aseptic Filling

The aseptic filling machine works together with the tube in tube type sterilizer.

11. Storage or go blending

The finished product can be stored or used as the raw material to make the tomato sauce or ketchup.

12. Mixing and blending

The mixing and blending system is used for the mixing of the tomato paste or fruit pulp with water, sugar, cinder according to their formula.

13. Degassing & Homogenizing

Degassing machine is used to remove the bubbles and airs in the fruit pulp or mixed product.

14. Pasteurizing

Kill the bacterial of the mixed product and improve the shelf-life.

15. Different packages filling system

For weighing, filling, sealing of the final package.

16. Water Spray or Immersion Pasteurizing and Cooling

Water immersion type sterilizer is a pasteurization equipment specially designed for the filling or packaging of dairy products, juices, beverages, beer, food, condiments, medicines and other products.

17. Air drying

Dry the metal can or sachet bag after the pasteurization.

18. Date printing

Print the production time or batch number on the can or bottle

19. Power Station of the whole plant

The system includes steam supply, compressed air supply, cooling water supply, ice water supply, power supply and so on.

Shanghai Gofun machinery company, a professional fruit and vegetable processing line manufacturer and exporter in China. Which can offer the turn-key solution for different fruit juice, pulp & paste processing complete line with high quality and competitive production lines with daily capacity from 60 tons to 1500 tons. We can provide the one-stop solution from A to Z, including plant construction, equipment manufacturing, installation, commissioning, and production; provide the most optimized implementation plan.

Gofun Company provides the turn-key solution for not only the tomato paste production line, but also the processing lines for many kinds of fruits & vegetables, like apples, pears, plums, coconuts, mulberries, etc., and has received widespread praises from customers from both the domestic and overseas. Our machines have already been exported all over the world including Asian countries, African countries, South American countries, and even European countries.
