Concentrated grape juice production machine turn key solution grape project

Description

Grape is very popular in many regions around the world. Gofun can supply complete grape processing line for the production of grape juice, beverage, jam as well as raisin.

Stalk removing machine
This machine is to remove/discharge the stalk and other residue from grape and to make grape grain by grain for the next processing step.
Vacuum pressing juice extractor
Instead of traditional membrane pressing juice extractor, Gofun invited the vacuum pressing system from Siprem. With vacuum pressing system the quality of the grape juice is much higher and more stable.
Enzymatic hydrolysis & Filtration system
The enzymatic processing is used to convert starch, cellulose and other biomass into glucose. This step of processing would be helpful for filter.
Different types of filtration machine can be offered: horizontal screw centrifuge, disk centrifuge, membrane filtration and etc. Type and model are customized according to the customer requirements and layout. Filtration system is to remove left fruit/vegetable pulp after extraction to produce clear and stable juice.

UHT Sterilizer
The sterilizing temperature and holding time is adjustable. With this machine, the fruit or vegetable juice/paste/pulper can be heated to a very high temperature around 115℃, held for 30s and then cooled to ambient temperature immediately. UHT sterilizer can protect the taste and nutrients of fruits or vegetables as much as possible.

Evaporator
In grape processing, falling film evaporator is used for concentrating products with low viscosity. According to different capacity, we have single-effect evaporator, double-effect evaporator, triple-effect evaporator and multi-effect evaporator for different projects.

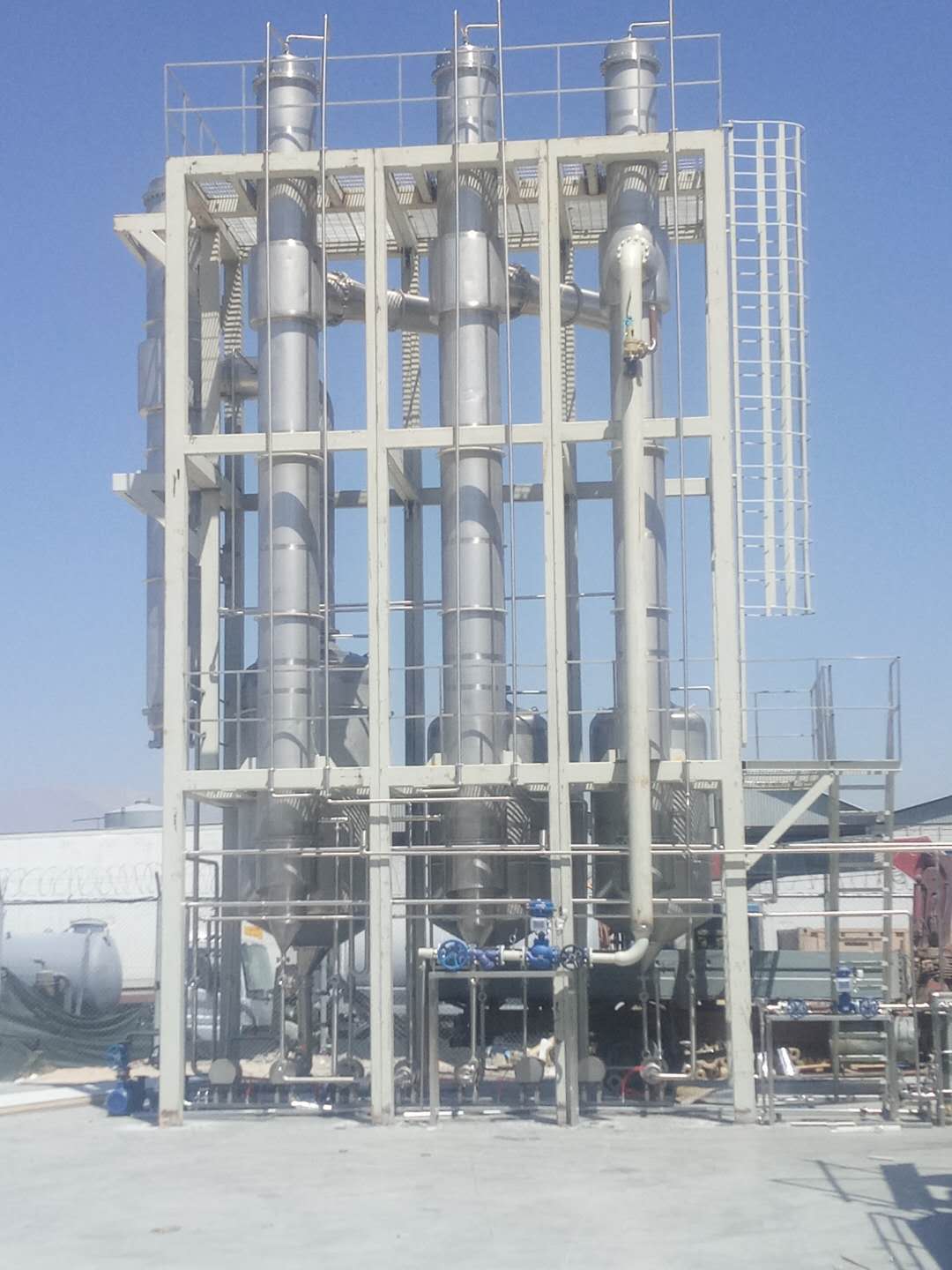

3-effect falling film evaporator

Aapplication

Flowchart

Grape Juice Concentration Processing Line
FRESH GRAPE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ STALK REMOVING ⇒ VACUUM PRESSING EXTRACTOR ⇒ ENZYMATIC HYDROLYSIS & FILTRATION SYSTEM ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING

Company Information

Our Services

SPARE PARTS
For providing the high level of efficiency to the Customer, we take care with particular attention that our stores are always best furnished, in order to perform the deliveries in the shorter time which is possible for reducing the incidental stops of the plants at the minimum level.

ON SITE ASSISTANCE
Further important investments have been allocated for improving the assistance methods on site, guaranteeing well-timed interventions on the markets in which the installed machinery and the service volume require presence and availability. You can consider your machines' maintenance and performance in good hands.

TRAINING
New resources have been dedicated to improve the theoretical education of the Customer’s employees, concerning the training about production line, supervision and production assistance.

Question & Answer

1. Q: Any guarantee of the machines?

A: Yes, 1-year free maintenance and life time paid service.

2. Q: What is the package of the machines?

A: Suitable for international shipment, for example: wrapped with plastic film and put in wooden cases.

3. Q: Shipping port?

A: Shanghai, other ports available if required.

4. Q: Transportation

A: Shipping by sea. Air available if required by customer.

Shanghai Gofun machinery company, a professional fruit and vegetable processing line manufacturer and exporter in China. Which can offer the turn-key solution for different fruit juice, pulp & paste processing complete line with high quality and competitive production lines with daily capacity from 60 tons to 1500 tons. We can provide the one-stop solution from A to Z, including plant construction, equipment manufacturing, installation, commissioning, and production; provide the most optimized implementation plan.

Gofun Company provides the turn-key solution for not only the tomato paste production line, but also the processing lines for many kinds of fruits & vegetables, like apples, pears, plums, coconuts, mulberries, etc., and has received widespread praises from customers from both the domestic and overseas. Our machines have already been exported all over the world including Asian countries, African countries, South American countries, and even European countries.
